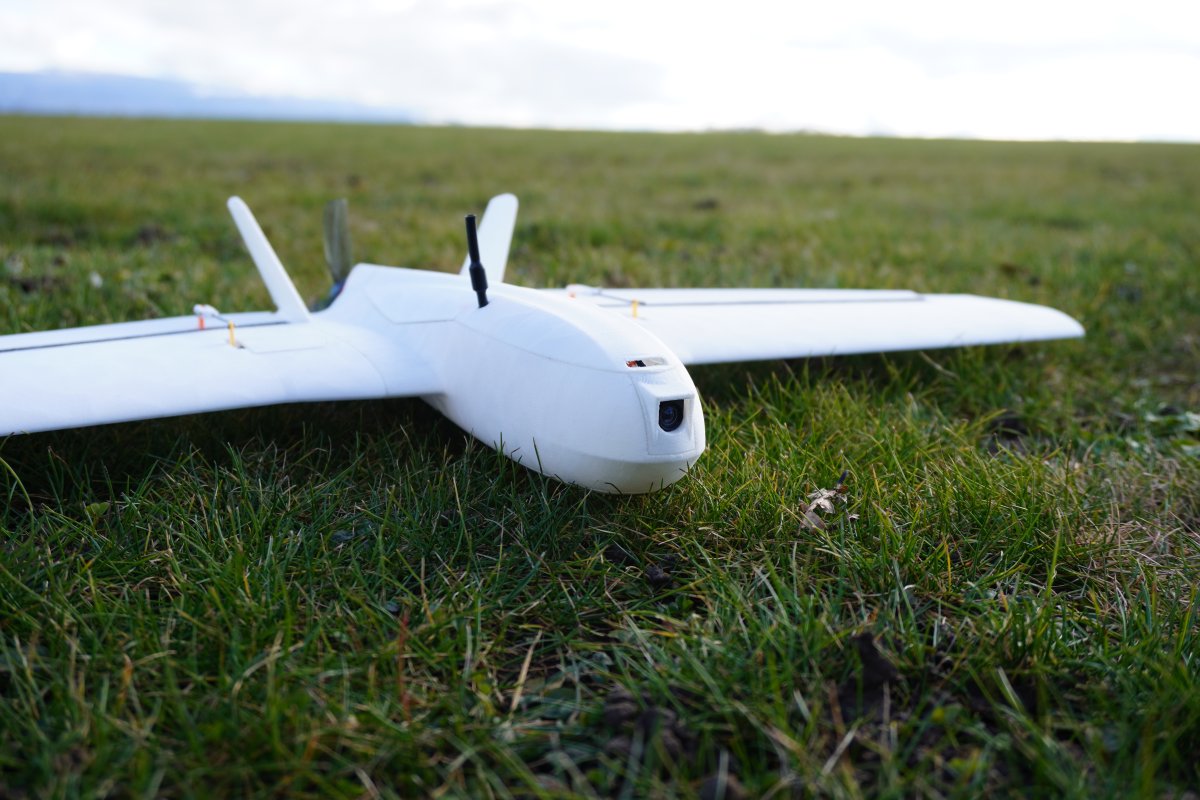

EL BANDITO

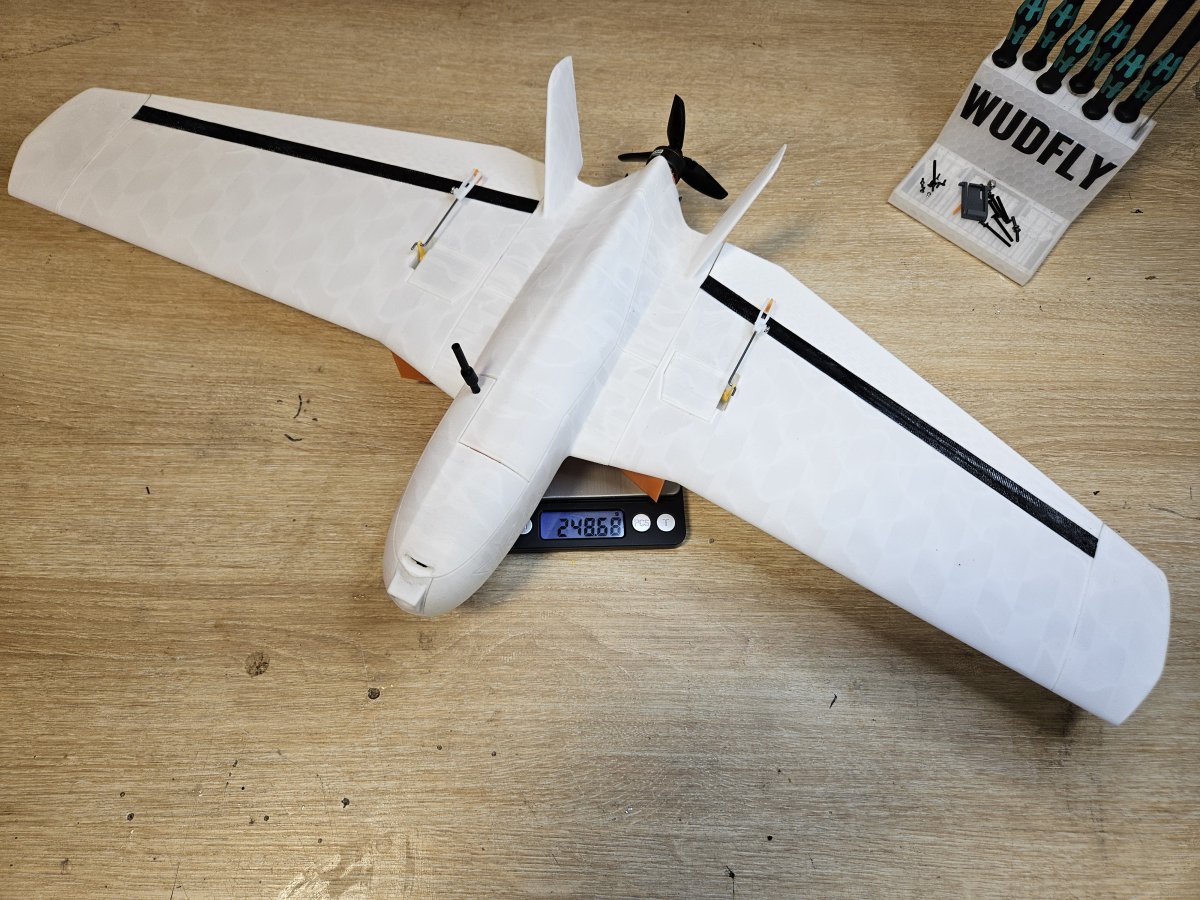

The only <250g, 4s, Digital, FPV wing.

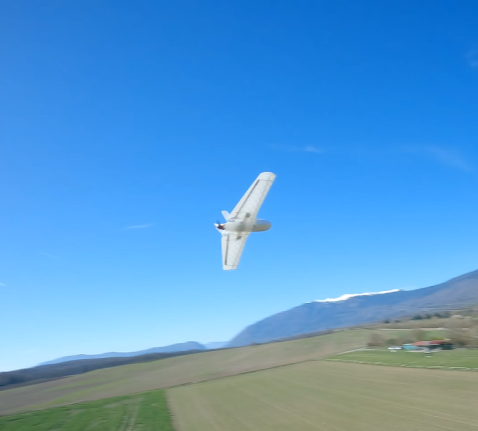

Top speed 197km/hr
Flight time over 20 mins
Are you ready?

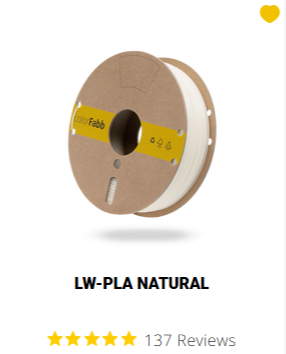

Colorfabb LW-PLA
WHAT IT TAKES TO GET EL BANDITO FLYING.
• A 3D printer with a max print height of above 210mm capable of printing foaming type light weight PLA filament. Such as the Bambulab X1C (what I use). The wings are the largest part but they can be split so that they can be printed on smaller printers like the A1 mini (180x180x180mm).
• Foaming LW-PLA (Light Weight PLA). The recommended filament is Colorfabb LW-PLA. All of the design, testing and validation has been done with this filament and the <250g credential is guaranteed with it. Other filaments can of course be used but results may vary. The following additional filaments are also needed PETG, TPU.
• The skills to assemble an FPV drone - EL BANDITO is like any quad almost, with 3 less motors, escs and two servos. If you have not already built an FPV drone then building EL BANDITO will be challenging and you will learn valuable skills along the way - it's worth it! There is a wealth of knowledge freely available on YouTube from people such as @painless360 to help you along the way!
WUDFLY - EL BANDITO
YOU ALSO NEED THIS.
• Flight Controller: Speedybee F405 WING MINI or MATEK F405 WMO
• ELRS Receiver: Radiomaster RP2
• HD Video System: DJI O4 Lite
• Motor: Betafpv Lava 1506 4200kv
• Servos: 2x DSPower 4.3g metal gear
• Battery: GNB 4s 1100mah Li-HV (XT30)
• ESC: EMAX 25A lightning or EMAX 30A Bullet
• Propeller: HQProp 3x3x3
• Carbon fibre tube 3mm (⌀) 575mm long
• Machine screws (flat top hex head) - 4x M2x8 + 2x M2x20
• 16x 3x1.5mm magnets
• XT30 plug
• 70mm 18AWG wire (+ and -)
• Double Sided Tape
• Super Glue
WUDFLY - EL BANDITO
WHAT I PROVIDE.
• STL files for all aircraft parts as well as a stand and assembly jigs.
• Slicer profiles for all parts (for Bambulab X1C+Colorfabb LW-PLA).
• Filament profiles for Colorfabb LW-PLA (Bambulab A1, P1, P2, X1C).
• Slicer settings, wall counts, infill type and % for all parts (for non-bambu users).
• User manual with assembly instructions.
• My full INAV config for the aircraft, including auto launch, servo, battery, OSD, setup.
• Ongoing development of the aircraft, support & updates.
• Access to DEV LAB a private discord with dev blog and community support.
“For me, EL BANDITO was never just about the plane itself. It was about making something small, capable, and easy enough that it invites adventure. The kind of aircraft that makes you want to go somewhere beautiful and fly.”
Andrew Livesley
